Key Features
Three 1/3" Exmor R CMOS Sensors
4K 60p Recording
Integrated 25x Sony G Optical Zoom Lens
Electronic Variable ND Filter
Optional MPEG HD License
Supports HLG for an HDR Workflow
Optional Simultaneous 4K/HD Recording
Built-In 2.4/5 GHz Wi-Fi

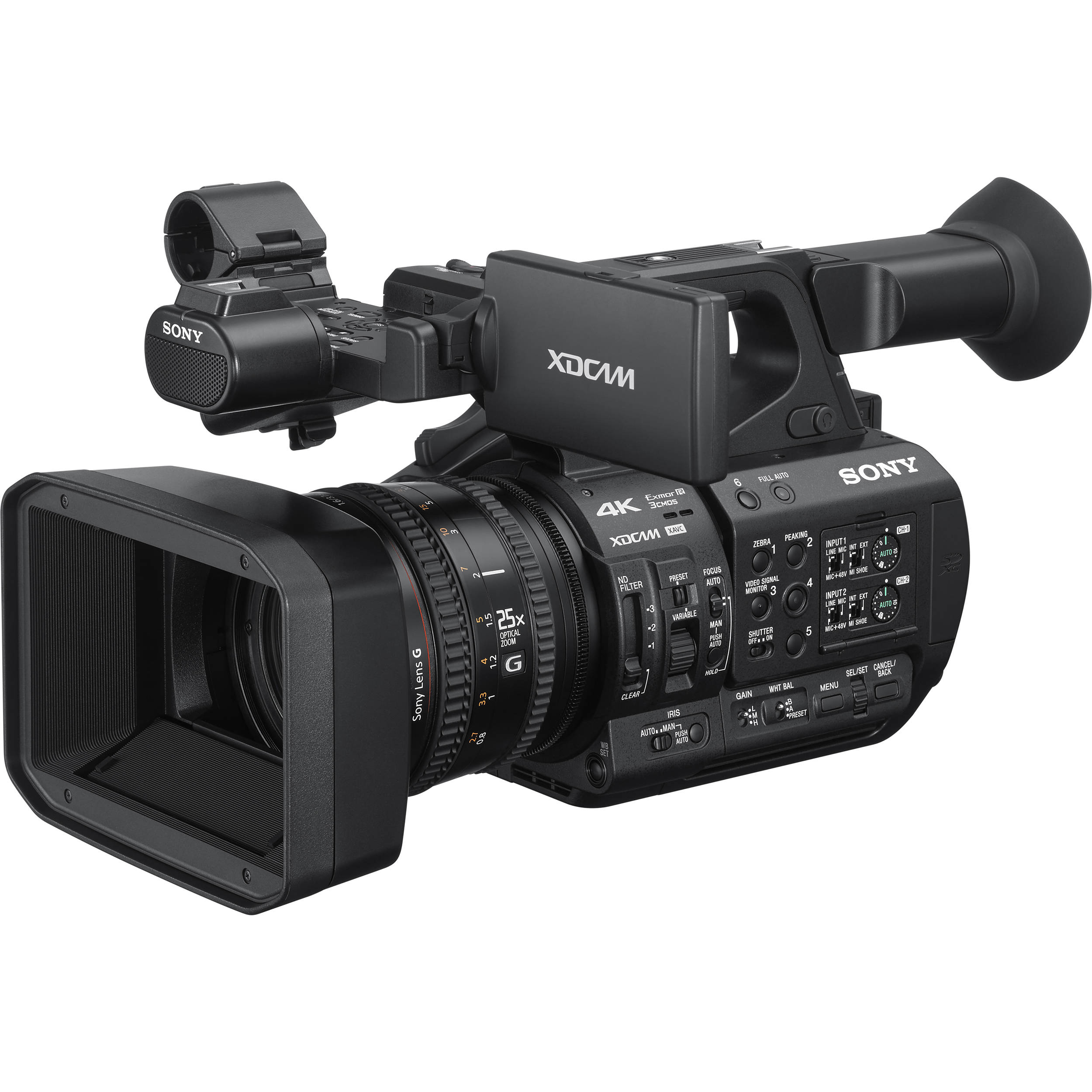

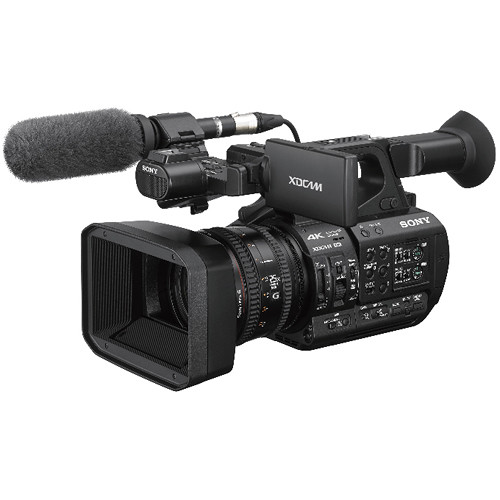

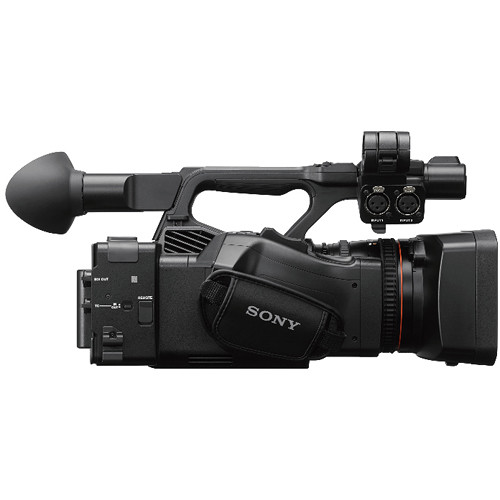

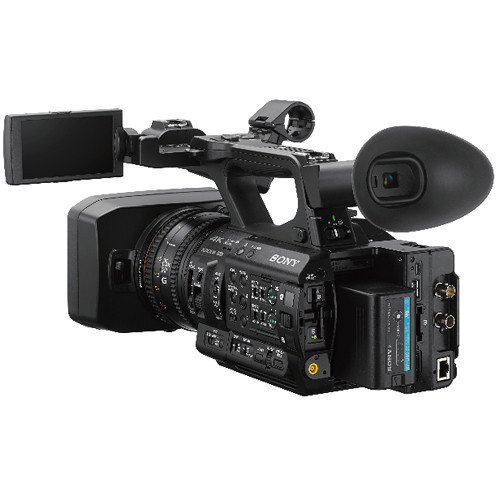

Sony's PXW-Z190 4K 3-CMOS 1/3" Sensor XDCAM Camcorder continues the fine tradition of the XDCAM series of cameras. It captures 4K at up to 60p, relying on three 1/3" Exmor R sensors that provide improved low-light capability compared to standard sensors. The camera integrates a 25x optical Sony G zoom lens and an electronic variable ND filter. The camera supports a variety of codecs out of the box, with an optional MPEG HD license enabling you to shoot HD video.

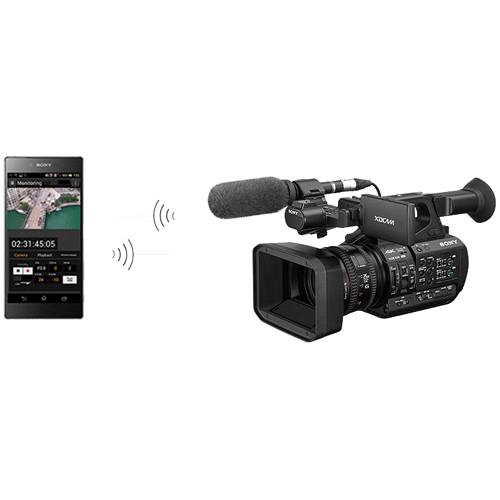

The camera supports HLG (Hybrid Log Gamma), allowing you to shoot and deliver footage compatible with both HDR (high dynamic range) and SDR (standard dynamic range) without needing laborious post-production work. Dual SD card slots permit a variety of recording options, including simultaneous HD and 4K recording. The camera features built-in 2.4 and 5 GHz Wi-Fi.
Specs
Imaging
Sensor Resolution Effective: 8.3 Megapixel
Image Sensor 1/3"-Type 3-Chip CMOS
Built-In ND Filter Mechanical Filter Wheel with Clear, 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64) ND Filters and a 2 to 7 Stop Electronic ND Filter
Capture Type Video Only
Exposure Control
Shutter Speed 1/8000 to 1/24 Second
Minimum Illumination 0.02 Lux
Lens

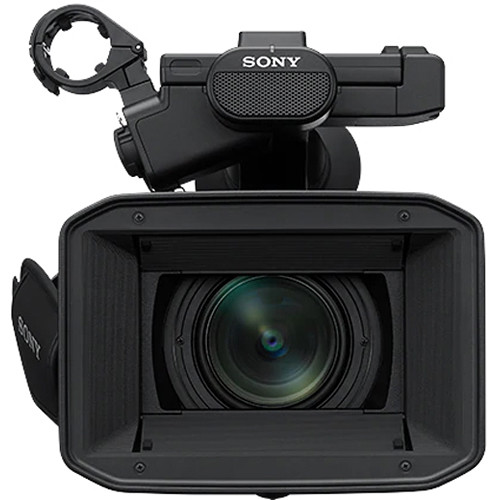

Focal Length 3.7 to 92.5mm (35mm Equivalent Focal Length: 28.8 to 720mm)
Optical Zoom Ratio 25x
Maximum Aperture f/1.6
Minimum Aperture f/11
Filter Size 82 mm
Control Rings Focus
Zoom
Iris
Focus Control Autofocus
Manual Focus
Video Capture
Internal Recording Modes XAVC-L
3840 x 2160 at 23.98/25/29.97/50/59.94 fps [150 Mb/s]
1920 x 1080p at 23.98/25/29.97/50/59.94 fps [35 to 50 Mb/s]
1920 x 1080i at 50/59.94 fps [25 to 50 Mb/s]
1280 x 720 at 50/59.94 fps [50 Mb/s]
DV
720 x 480i at 59.94 fps
720 x 480p at 29.97 fps
720 x 576i at 50 fps
720 x 576p at 25 fps
Built-In Microphone Type Stereo
Audio Recording XAVC: 4-Channel 24-Bit 48 kHz LPCM Audio
IP Streaming Yes
Interface

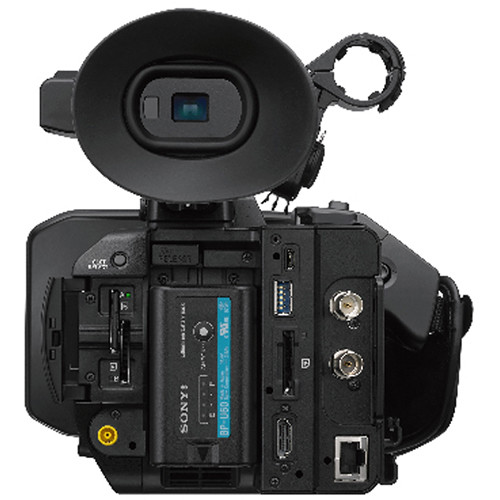

Video I/O 1 x BNC (3G-SDI) Output
1 x HDMI Output
Audio I/O 2 x XLR 3-Pin Mic/Line (+48 V Phantom Power) Input
1 x 1/8" / 3.5 mm TRS Stereo Headphone Output
Other I/O 1 x BNC (Timecode) Input/Output
1 x Micro-USB
2 x USB-A
1 x RJ45 (LAN)
1 x 2.5 mm Sub-Mini (LANC) Control
Wireless 2.4 / 5 GHz Wi-Fi 5 (802.11ac), NFC
Monitor
Size 3.5"
Resolution 1,560,000 Dot
Display Type Articulating LCD
Viewfinder
Type Built-In Electronic (LCD)
Size 0.39"
Resolution 2,360,000 Dot
Focus
Focus Type Auto and Manual Focus
Focus Mode Automatic, Manual Focus
General
Battery Type Sony BP-U Series
Accessory Mount 1 x Intelligent Hot Shoe
Built-In Video Light No
Dimensions (W x H x D) 7.5 x 8 x 16.5" / 190 x 202 x 419.7 mm (With Protrusions)
Weight 5.07 lb / 2.3 kg
- 8-Bit
- 10-Bit
- NFC
- Wi-Fi
- 4:2:2 (Εσωτερικά)
Φακός. Sony G f=9.3 - 111.6 mm, F2,8-F4,5 (f=29.0 - 348.0mm ισοδύναμο στα 35mm), Διάμετρος φίλτρου. 62mm
Αισθητήρας. 1.0-type (13.2 mm x 8.8 mm) back-illuminated Exmor RS CMOS sensor
Ελάχιστη Φωτεινότητα. 1.7lux (50i, Low Lux Mode)
Εγγραφή
Φορμά Εγγραφής Video. XAVC Long GOP, AVCHD, DV.
Επιλογές Εγγραφής.
XAVC QFHD (3840 x 2160) @29.97p, 25p, 23.98p 100Mbps/60Mbps
XAVC HD (1920 x 1080) @59.94p, 50p, 50 Mbps/35 Mbps
AVCHD (1920 x 1080)@50p,59.94p PS mode (28 Mbps)
AVCHD (1920 x 1080) @50i/25p, 59.94i/29.97p/23.98p FX mode (24 Mbps) FH mode(17 Mbps)
AVCHD (1440 x 1080)@50i, 59.94i HQ mode (9 Mbps) LP mode (5 Mbps)
AVCHD (1280 x 720)@50p,59.94p FX mode (24 Mbps) FH mode (17 Mbps) HQ mode (9 Mbps)
DV (720 x 576) @50i,59.94i 25 Mbps
Διάρκεια Εγγραφής (σε κάρτα SDXC 64GB) .
XAVC HD LPCM 2ch 50Mbps - 120'
AVCHD@ PCM 2ch PS Mode 28 Mbps - 290'
DV 25 Mbps. 280'
Φορμά Εγγραφής Ήχου.
XAVC HD : Linear PCM 2ch, 24 bit, 48 kHz
AVCHD : Linear PCM 2ch, 16 bit, 48 kHz / Dolby Digital 2ch, 16 bit, 48 kHz
DV : Linear PCM 2ch, 16 bit, 48 kHz
Μέσο Εγγραφής. SD/SDHC/SDXC x 1, Memory Stick PRO Duo/Memory Stick PRO-HG Duo/SD/SDHC/SDXC x 1
Είσοδοι-Έξοδοι
Audio IN. XLR-type 3-pin (female) (x2), line/mic/mic +48 V selectable
Audio OUT. RCA, Headphone mini-jack, ηχεία.
Εικόνα. 1x 3G-SDI BNC out, 1x Composite BNC out, 1x HDMI A (Full)
Λοιπές. Remote mini mini jack (LANC), Multi/Micro USB jack
LCD Monitor. 3.5'', 1.56 M dots
Εικονοσκόπιο. 0.39'', 1.44 M dots
Γενικά
Βάρος. Περίπου 1895g σώμα, 2270g με μπαταρία NP-F770, σκίαστρο.
Διαστάσεις. 171.3 × 187.8 × 371.3 mm (σώμα & σκίαστρο)
Κατανάλωση Ενέργειας κατά την Εγγραφή. 6,3W (με μόνιτορ), 6,6 W (με viewfinder)
Συμβατές Μπαταρίες. NP-F770, NP-F970 (L series).
Ενσωματωμένο Μικρόφωνο. Ναι
Παρεχόμενα Αξεσουάρ. Φορτιστής, Μπαταρία NP-F770, AC-L100 AC Adapter, Καλώδιο ρεύματος, Μεγάλο Eyecup, USB Καλώδιο, RMT-845 τηλεκοντρόλ, CR2025 μπαταρία για τηλεκοντρόλ, Παρασολέ, Κάλυμμα φακού, Εγχειρίδιο Χρήσης, κάλυμμα coldshoe.
Εγγύηση. 2 χρόνια Sony Primesupport
Imaging
Image Sensor 1-Chip 1" CMOS Sensor
Sensor Resolution 20.00 MP
Effective Sensor Resolution 14.2 MP
Gain -3 to 33 dB
Minimum Illumination 1.7 lux
White Balance Range 2300 to 15,000K
Lens
Focal Length 9.3 to 111.6mm
35mm Equivalent Focal Length 29 to 348mm
Optical Zoom Ratio 12x
Max Digital Zoom 48x
Maximum Aperture f/2.8 to 4.5
Filter Size 62 mm
Image Stabilization Optical
Focus Control Autofocus
Manual Focus
Camera
Shutter Speed 1/6 to 1/10,000 sec
Built-In ND Filter Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters
Built-In Microphone Type Stereo
Recording Media 1 x SDXC/Memory Stick PRO Duo Hybrid Card Slot
1 x SDXC Card Slot
Recording
Broadcast System Compatibility NTSC
Recording Modes XAVC-L 4:2:0 8-Bit:
3840 x 2160p at 23.98/25/29.97 fps (60 to 100 Mb/s)
1920 x 1080i at 50/59.94 fps (25 to 50 Mb/s)
1920 x 1080p at 23.98/25/29.97/50/59.94 fps (35 to 50 Mb/s)
1280 x 720p at 50/59.94 fps (50 Mb/s)
MPEG2 4:2:2:
1920 x 1080p at 23.98/25/29.97 fps (50 Mb/s)
1280 x 720p at 23.98/25/29.97/50/59.94 fps (50 Mb/s)
AVCHD:
1920 x 1080p at 23.98/25/29.97/50/59.94 fps (24 to 28 Mb/s)
Variable Frame Rates 1080i: 120 fps
1080i: 100 fps
1080i: 1 to 60 fps
1080i: 1 to 50 fps
Audio Recording 2-Channel 24-Bit 48 kHz
Interfaces
Video Connectors 1 x RCA (Composite) Output
1 x HDMI Output
1 x BNC (3G-SDI) Output
Audio Connectors 1 x Stereo 2RCA Output
1 x 1/8" (3.5 mm) Stereo Headphone Output
2 x 3-Pin XLR Mic/Line Level (+48 V Phantom Power) Input
Other I/O 1 x 2.5 mm LANC Control
1 x USB Micro-B
Wireless Interfaces 2.4 GHz Wi-Fi
Display
Display Type LCD
Screen Size 3.5"
Screen Resolution 1,560,000 Dots
EVF
Screen Size .39"
EVF Resolution 1,440,000 Dots
Power
Power Connectors 1 x Barrel Input
Power Consumption 6.6 W
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature -4 to 140°F / -20 to 60°C
General
Accessory Mount 1 x Multi-Interface Shoe
Dimensions 6.7 x 7.4 x 14.6" / 171.3 x 187.8 x 371.3 mm
Weight 5.1 lb / 2.3 kg
